16 fold Switch Actuator AKK compact 16A 230Vac

Information

Datasheet

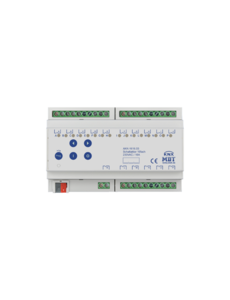

AKK-1616.03 Switch Actuator from the AKK Series

The AKK-1616.03 switch actuator from MDT is a high-quality and compact device, ideal for switching medium electrical loads in both residential and commercial installations. This model offers 16 independent switching channels with bistable relays, supporting a maximum switching capacity of 16 A per channel. The device is suitable for C-loads up to 70 µF, making it versatile for various applications, including inductive and capacitive loads.

Main Features and Functions:

• 16 Switching Channels: For independently switching 16 electrical loads.
• Bistable Relays: Ensures low energy consumption as the relays only consume power when switching.
• Manual Operation: Lockable buttons with LED indicators for direct status display of each output.
• NO and NC Contact Operation: Supports both normally open (NO) and normally closed (NC) configurations.
• Status Feedback: Provides immediate feedback after manual operation, adjustable per channel for active and passive modes.
• Time Functions: Configurable switch-on and switch-off delays for each output.
• Staircase Light and Pulse Function: Ideal for staircase lighting and other temporary switching applications.
• Logical Functions: Allows logical linking of binary data for complex automation tasks.
• Scene Management: Supports up to 8 scenes per channel with extended scene functions for flexible automation.
• Blocking and Central Functions: Allows for central switching or blocking of channels.
• Behavior on Voltage Drop: Adjustable behavior in case of bus voltage failure and recovery, including the restoration of the last state.
• Separate L-Connections: For each output, simplifying installation and phasing.
• Bus Power Supply via KNX: The actuator is powered via the KNX bus, simplifying wiring.
• Quick Configuration: Supports quick application downloads via ETS 5 or higher with long frame support.
• Certification: Made in Germany and certified according to ISO 9001.

Technical Specifications:

• Nominal Voltage: 230 V AC
• Maximum Current per Channel: 16 A
• Maximum C-load: 70 µF
• Mounting: DIN rail (35 mm) according to EN 60715
• Switching Cycles: > 100,000 (at nominal load)
• Ambient Temperature: -5°C to +45°C
• Protection Rating: IP20
• Dimensions: 144 x 90 x 64 mm (8 TE)
• Weight: 500 g
• ETS Programming: Via ETS 5 or higher
• Warranty: 3 years

Note: Mixed operation of nominal and safety extra-low voltage (SELV) within the actuator is not permitted!
