4-fold switch actuator AKK compact 16A 230Vac
€162,02 Incl. tax €249,26 Incl. tax. Out of stock, but available
Specifications
Information

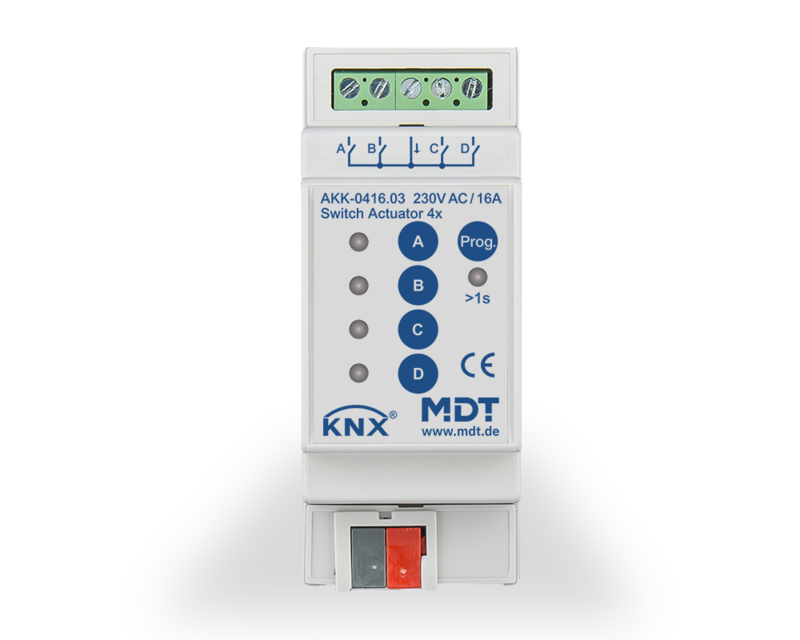

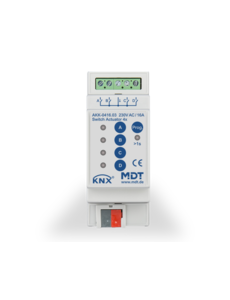

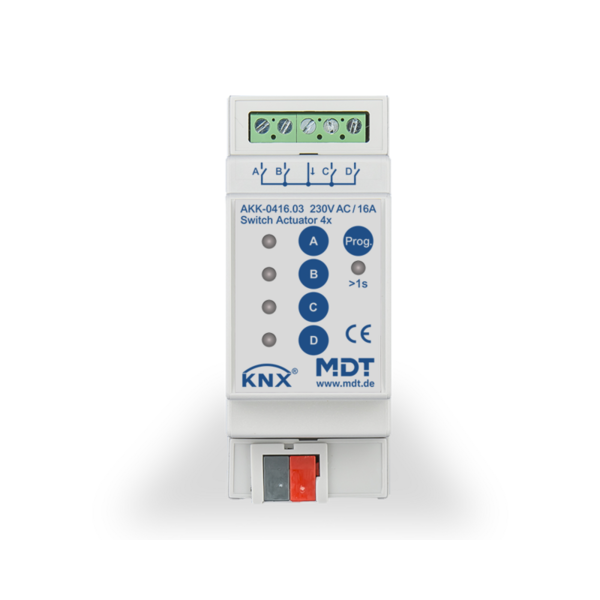

AKK-0416.03 Switch Actuator - Compact, Versatile, and Reliable
The AKK-0416.03 switch actuator from the AKK series is a compact and versatile solution for switching electrical loads up to 16 A. This 4-channel actuator is ideal for installations where space and flexibility are critical. With extensive functions like time settings, logical operations, and status feedback, the AKK-0416.03 provides a high degree of control and reliability.
Technical Specifications
- Rated Voltage: 230 V AC
- Rated Frequency: 50/60 Hz
- Maximum Switching Capacity: 16 A per channel
- C-load: Up to 70 µF per channel
- Operating Temperature: -5°C to +45°C
- Mounting: DIN rail, 35 mm
- Dimensions: 2 SU (36 mm wide)
- Manual Operation: Lockable push-buttons with LED indicators
- Relay Type: Bistable
- Contact Type: NO (normally open) and NC (normally closed)
- Time Functions: Switch-on delay, switch-off delay, staircase light function, impulse function
- Scene Functions: 8 scenes per channel
- Logical Functions: Logical AND/OR operations for binary data
- Bus Voltage: 21-32 V DC, power supply via KNX bus
- Power Loss: Maximum 4 W
- ETS Configuration: ETS 5 or higher required for fast application download
- Insulation: Double insulation according to EN 60730-1
- Protection Rating: IP20, suitable for installation in dry rooms
- Certifications: Manufactured in Germany, ISO 9001 certified
- Warranty: 3 years
Safety Information
Note: Mixed operation of nominal and safety extra low voltage (SELV) within the actuator is not permitted. The AKK-0416.03 is designed for use in dry environments and must be installed in a closed distribution board or panel.
Available Variants in the AKK Series
- AKK-0216.03: 2-fold, 2 SU MDRC, 230 V AC, 16 A
- AKK-0416.03: 4-fold, 2 SU MDRC, 230 V AC, 16 A
- AKK-0816.03: 8-fold, 4 SU MDRC, 230 V AC, 16 A
- AKK-1616.03: 16-fold, 8 SU MDRC, 230 V AC, 16 A
- AKK-2416.03: 24-fold, 12 SU MDRC, 230 V AC, 16 A
