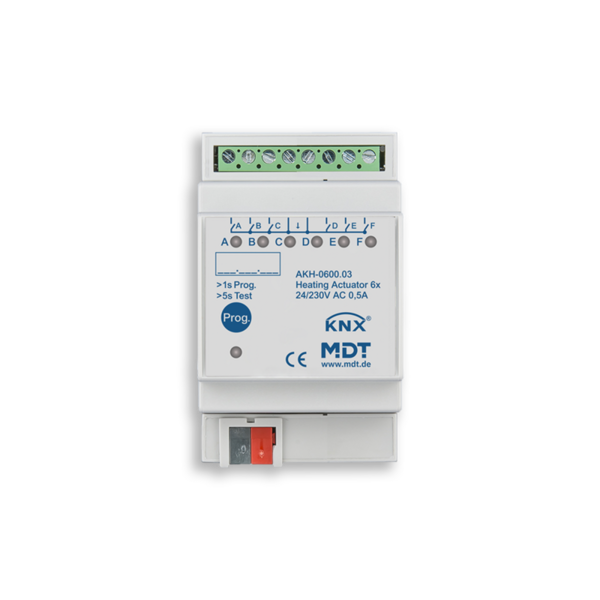

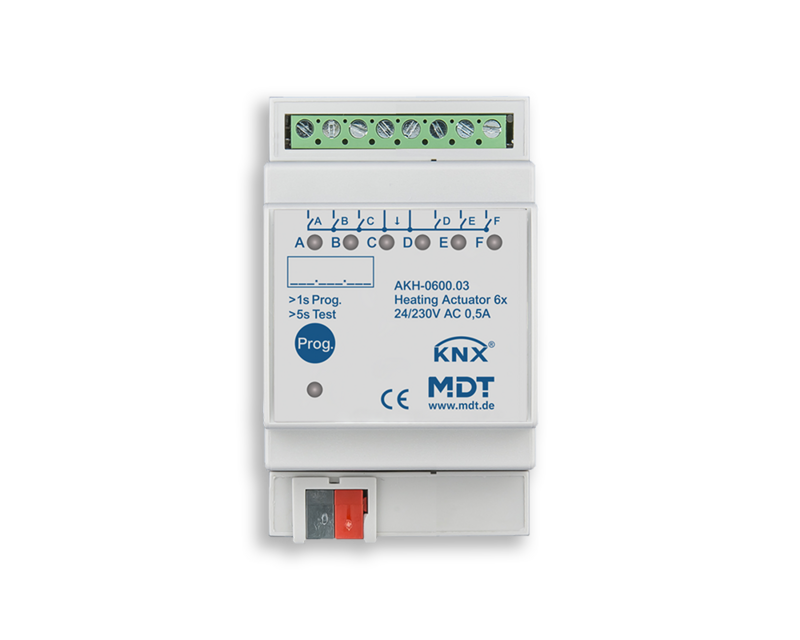

6-fold Heating Actuator for electrothermic valves 24-230VAC

0 Review(s)

€146,25 Excl. tax €225,00 Excl. tax
€176,96 Incl. tax €272,25 Incl. tax. Out of stock, but available Manual

Unit price: €146,25 / Piece

Heating actuator with integrated PI controller for 6 electrothermic valve drives. Supports 24-230VAC, emergency operation on telegram failure, KNX-compatible. Read more

Specifications

Brand:

MDT

Article number:

AKH-0600.03

EAN:

4251916130138

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

DCA app

Heating Actuator for 6 Electrothermic Valves - 24-230VAC

The MDT Heating Actuator AKH-0600.03 is designed to control up to 6 electrothermic valve drives with a power supply of 24-230VAC. With its integrated PI controller, the device can accurately manage temperature variations, ensuring optimal comfort in both heating and cooling systems. This actuator is KNX-compatible and offers various functions such as emergency operation on telegram failure, comfort, night, and frost protection, as well as summer and winter operation.

Key Features

Supports up to 6 independent electrothermic valves
Integrated PI controller for precise temperature regulation
KNX-compatible for easy integration into existing systems
Emergency operation on telegram failure, with fault message object
Supports comfort, night, and frost protection, summer/winter mode
Overload protection with fault message (230VAC)
Minimum flow temperature and diagnostic function per channel

Technical Specifications

Number of outputs: 6
Switching current: 24-230VAC, max. 500mA with ohmic load
Inrush current: max. 4A per channel
Operating environment: 0 ... 45°C, IP20 enclosure
Power consumption: typ. < 0.3W via KNX bus
Wire gauge: 0.5 - 4.0 mm² for solid core, KNX bus Ø 0.8 mm solid core
Dimensions: 3 SU (Space Units), suitable for DIN 35 mm rail

The actuator comes with a 3-year warranty and is manufactured in Germany according to ISO 9001 standards, ensuring the reliability and quality of the product.
