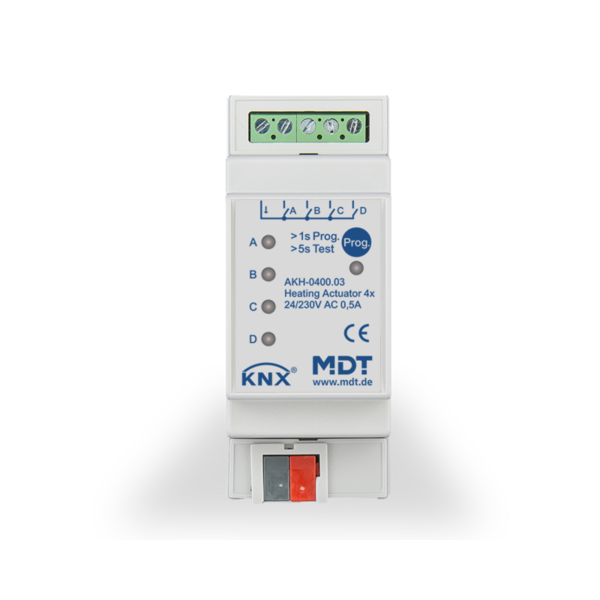

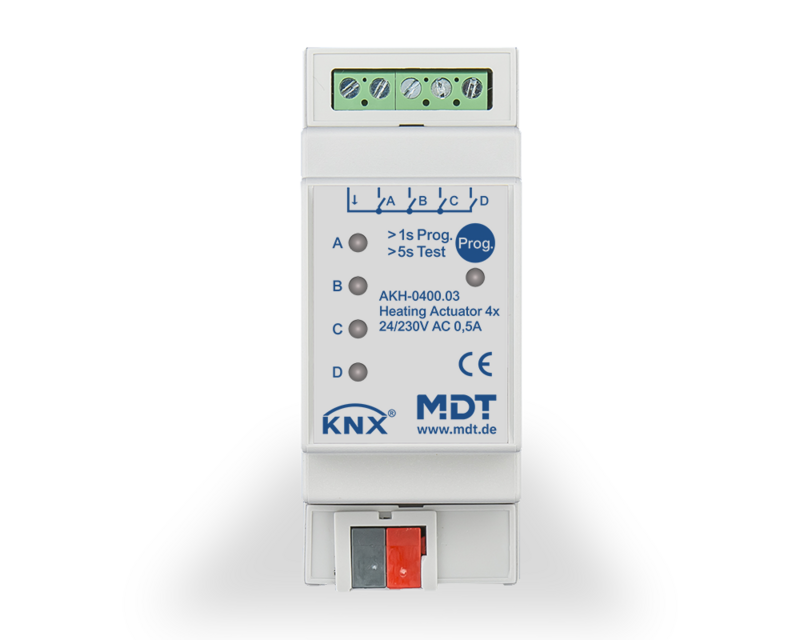

4 fold Heating Actuator to control electrothermic valve drives 24-230VAC

0 Review(s)

€130,00 Excl. tax €200,00 Excl. tax
€157,30 Incl. tax €242,00 Incl. tax. In stock (1) Manual

Unit price: €130,00 / Piece

Heating actuator for 24-230VAC. Controls up to 4 electrothermal valve drives per channel. Integrated PI controller for heating and cooling. Supports 1 Bit, 1 Byte, and direct temperature control via KNX. Read more

Specifications

Brand:

MDT

Article number:

AKH-0400.03

EAN:

4251916130114

Availability:

In stock (1)

Delivery time:

Will be shipped within 1 to 2 working days.

Information

Datasheet

DCA Software

Heating Actuator for 24-230VAC with 4 Channels

The Heating Actuator is designed to control electrothermal valve drives with a voltage of 24-230VAC. This actuator features an integrated PI controller supporting both heating and cooling applications. Each output can control up to 4 electrothermal actuators.

Key Features:

Each channel supports up to 4 electrothermal valves (230 VAC).
Integrated PI controller for precise temperature regulation, supporting comfort, night, and frost protection, as well as summer/winter operation.
Compatible with KNX bus and directly controllable via temperature value, 1 Bit, or 1 Byte actuating variables.
Emergency operation and overload protection during power failure.
Extensive diagnostic capabilities for each output, including a 14-byte plain text object.
Integrated scene functionality for versatile applications.

Technical Specifications:

Number of outputs: 4
Output switching current: 24 V AC, ohmic load 500 mA; 230 V AC, ohmic load 500 mA
Maximum inrush current: 4 A per channel
External switching voltage: 24-230 V AC
KNX Interface: TP-256 with long frame support
Operating temperature range: 0 ... 45 °C
Enclosure: IP20
Dimensions: 2 SU (35 mm DIN rail mounting)

This actuator is ideal for applications in both residential and commercial buildings where precise temperature control is essential.
