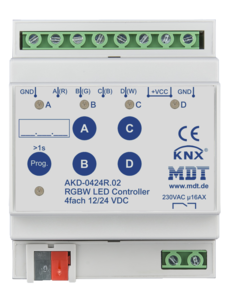

4-channel LED Controller 4/8A, MDRC device For 12/24V CV LED RGBW, TW

0 Review(s)

€184,50 Excl. tax €246,00 Excl. tax
€223,25 Incl. tax €297,66 Incl. tax. Out of stock, but available

Unit price: €184,50 / Piece

LED controller for 12/24V CV LEDs, suitable for RGBW, Tunable White, and single colors. 4 channels with a total current of 4/8A. Adjustable PWM frequency up to 1000Hz, automatic color temperature control, and dynamic daylight control. Read more

Specifications

Brand:

MDT

Article number:

AKD-0424R.02

EAN:

4251916130077

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

LED Controller AKD-0424R.02 - 4 Channels 4/8A for 12/24V CV LED

The AKD-0424R.02 LED Controller by MDT is designed to dim LED lamps with a constant voltage of 12V and 24V. This controller is suitable for single-color LEDs, RGBW, and Tunable White applications, enabling versatile lighting solutions.

Main Features

Supports 12/24V CV LEDs (common anode) with 4 channels of 4A each, or one channel of 7A and three channels of 3A.
Adjustable PWM frequency up to 1000Hz for smooth dimming.
Absolute and relative dimming for RGBW and HSV color schemes.
Automatic color temperature control with Dim2Warm function.
Dynamic daylight control with HCL (Human Centric Lighting) support.
Parallel channel operation for higher current requirements up to 8A.
Overcurrent and overtemperature protection for safe operation.
Day/night function for time-dependent light control.
16A C-Load relay output to control an external LED power supply.

Technical Specifications

Number of outputs: 4
Dimming via PWM: 600/1000Hz
Relay output: 230VAC/50Hz, 16A
Maximum current per channel: 4/8A
Operating temperature: 0 to +45°C
Enclosure: IP20, suitable for DIN rail mounting (4SU width)
ETS configuration: available for ETS 4/5

The AKD-0424R.02 LED Controller is a high-quality German product, ISO 9001 certified, with a 3-year warranty. It is ideal for residential and commercial lighting installations where precise color and light control are required.
