2-Channel LED Controller CC/CV 60 W / 230 V

0 Review(s)

€200,25 Excl. tax €267,00 Excl. tax
€242,30 Incl. tax €323,07 Incl. tax. Out of stock, but available

Unit price: €200,25 / Piece

Compact LED controller with integrated power supply for constant current (700/1400 mA) and constant voltage, suitable for 60 W output. Supports tunable white, automatic dimming, and hybrid dimming mode. Read more

Specifications

Brand:

MDT

Article number:

AKD-0260CC.02

EAN:

4251916130770

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

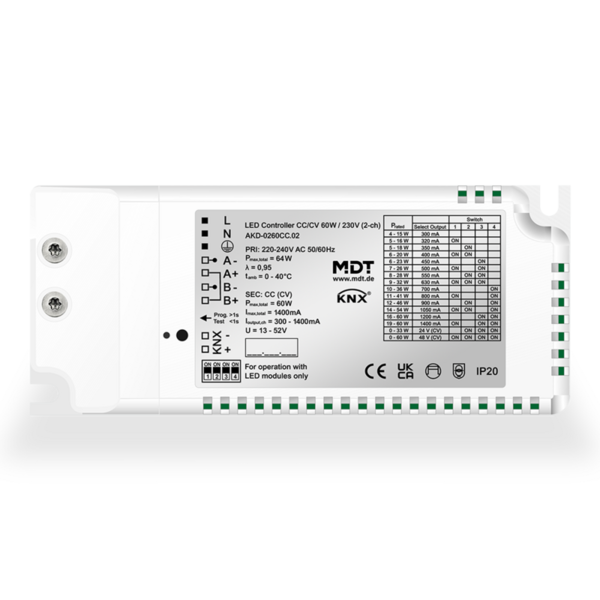

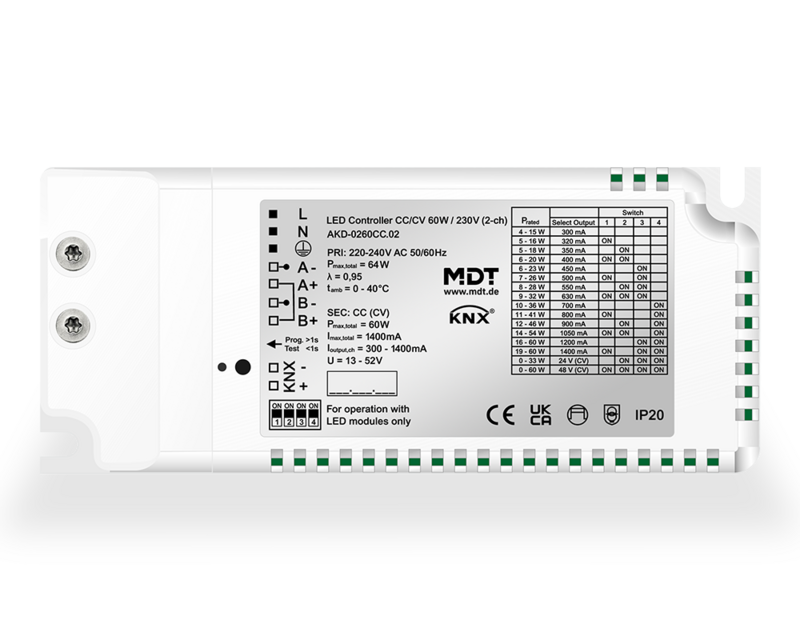

LED Controller CC/CV 60 W / 230 V, 2-Channel

The LED Controller CC/CV is a compact and powerful solution for controlling LED lighting with constant current and constant voltage. This controller, with integrated power supply, supports a wide range of applications and provides optimal performance for a maximum output of 60 W.

Key Features:

Maximum output power: 60 W (across both channels)
Output current: 700 mA or 1,400 mA, selectable via DIP switch
Constant current (CC) and constant voltage (CV) mode, 24 V or 48 V
Hybrid dimming mode for improved light quality
Dimming range: 0.2% to 100%
Tunable White for adjustable color temperature
Automatic color temperature control (Dim2Warm) and dynamic daylight control (HCL)
Overcurrent and temperature monitoring
Automatic time-dependent dimming
Compact dimensions: 129 x 54 x 25 mm

Specifications:

Number of outputs: 2
Supply voltage: 230 V AC, 50 Hz
Standby power consumption: 0.3 W
Output voltage: 13 ... 52 V DC
Protection class: IP20
LED output cable length: max. 6 m per channel
KNX interface: TP-256 with Long Frame Support
Ambient temperature range: 0 ... 40 °C

This LED controller is ideal for demanding lighting projects, offering advanced features such as dimming and color management. Compatible with KNX and easily configurable via ETS software.
