2-Channel LED Controller CC/CV 30 W / 230 V
€188,76 Incl. tax €251,68 Incl. tax. Out of stock, but available
Specifications
Information

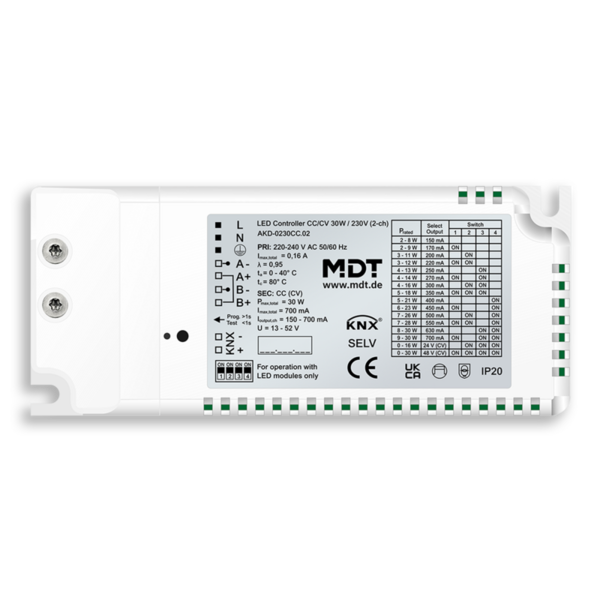

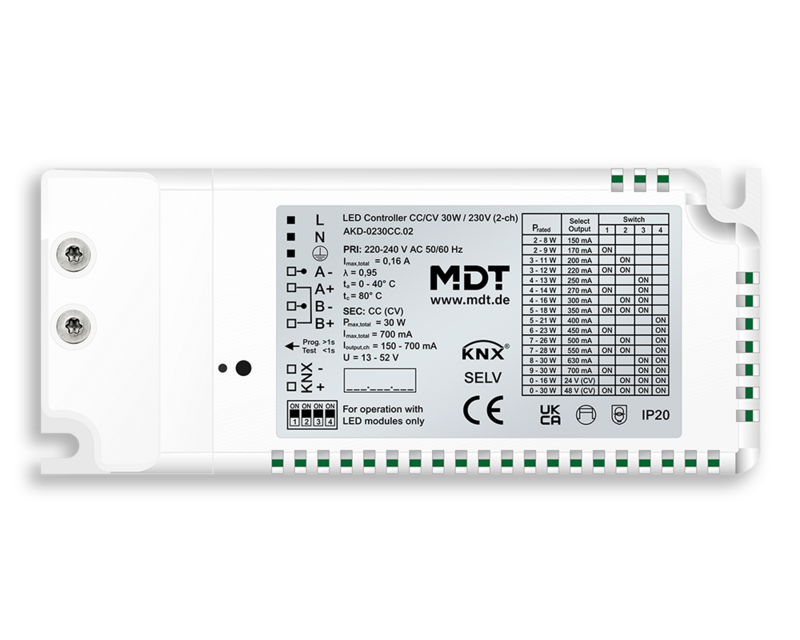

LED Controller CC/CV 30 W / 230 V, 2-Channel
The LED Controller CC/CV is an advanced and compact LED controller with an integrated power supply, designed for both constant current (CC) and constant voltage (CV) LED applications. With two channels, this controller provides a maximum power output of 30 W and supports hybrid dimming for enhanced light quality, with a dimming range of 0.2% to 100%.
Key Features
- Supports both constant current (700 mA) and constant voltage (24V/48V) with an easily adjustable DIP switch.
- Suitable for Tunable White color temperature control and dynamic daylight control (Human Centric Lighting).
- Automatic color temperature control with Dim2Warm technology.
- Extensive KNX integration for configuration via ETS5.
- Protected against overload and overheating, with an automatic time-dependent dimming function.
Technical Specifications
- Number of Outputs: 2
- Supply Voltage: 230 V AC, 50 Hz
- Standby Power Consumption: < 0.3 W
- Dimming Range: 0.2% ... 100%
- Output Power: Maximum 30 W
- Output Current: 150 ... 700 mA (adjustable via DIP switch)
- Output Voltage: 13 ... 52 V DC
- Constant Voltage: 24 V / 48 V (adjustable via DIP switch)
- Cable Length LED Outputs: max. 6 m per channel
- KNX Interface: TP-256 with Long Frame Support
- Protection Class: IP20
- Dimensions (W/H/D): 129 x 54 x 25 mm
The LED Controller CC/CV 30 W / 230 V offers not only superior dimming performance but also a wide range of functionalities such as HCL, Dim2Warm, and automated dimming profiles. With extensive configuration options via KNX and ETS5, it is the ideal choice for demanding LED lighting solutions.
