8-way switch actuator 16A C-Load per channel, 4 TE
Specifications
Information

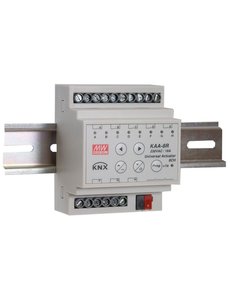

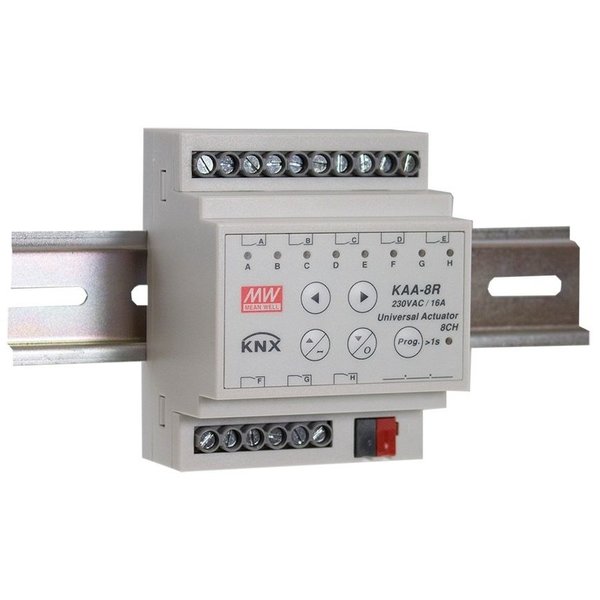

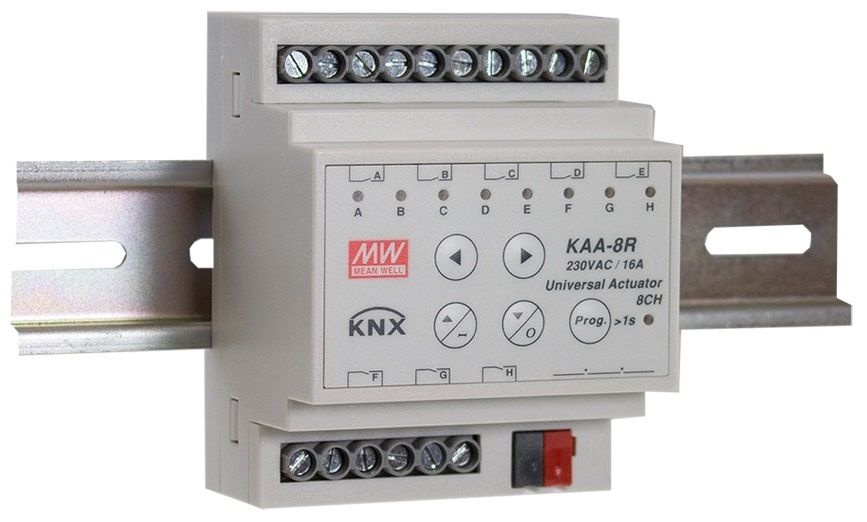

Mean Well KNX - KAA-8R-16 KNX Universal Actuator
The Mean Well KNX KAA-8R-16 is a versatile 8-channel KNX actuator, suitable for 16A-C loads and a wide range of applications, including lighting, climate control, and shading. With its compact design of just 4 modules (72 mm) wide, this actuator fits easily into any distribution board and is ideal for use in EIB/KNX applications.
Main Features
- Suitable for switching resistive, capacitive (up to 220µF), and inductive loads, including 16A-C loads
- Number of switching outputs: 8, each with a load of up to 16A
- Number of heating outputs: 8
- Number of shutter outputs: 4
- Independent, potential-free bistable relays for maximum flexibility
- Programmable via ETS5.0 software
- Manual control via integrated push buttons
- Compact design: only 4TE wide
Applications
This universal actuator is ideal for a wide range of applications, from standard lighting and climate control to advanced shading control. The high capacity load, including 16A-C loads, and versatility allow for complex installations with a single device.
The Mean Well KAA-8R-16 is a reliable choice for both residential and commercial installations, thanks to its robust build quality and extensive functionality.
Specifications
- Power Supply: Powered via KNX bus, no separate 230Vac required
- Load per Channel: Maximum 16A
- Capacitive Load: Up to 220µF
- Dimensions: 72 mm (4TE)
- Programming: ETS5.0
- Manual Control: Via integrated push buttons
Note: This item is also available as a KNX Secure component (part no. KAA-8R-16S).
