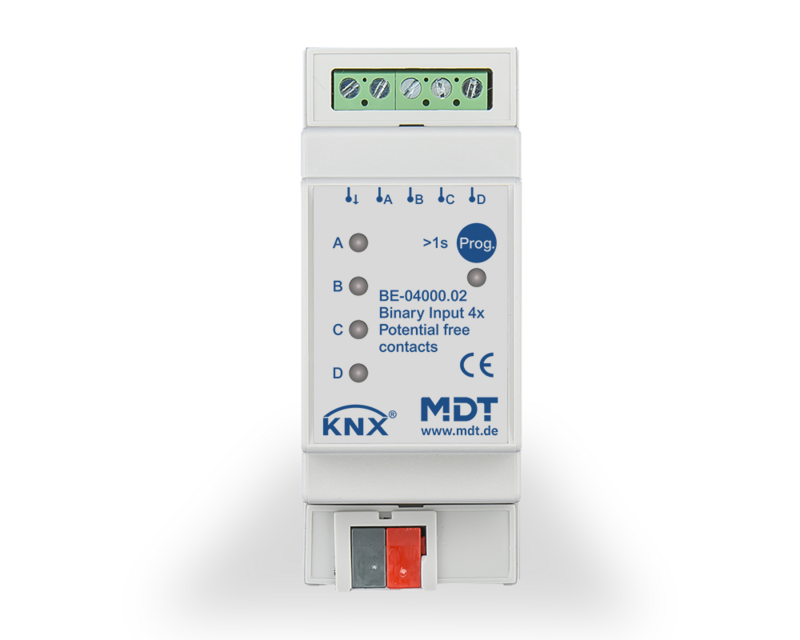

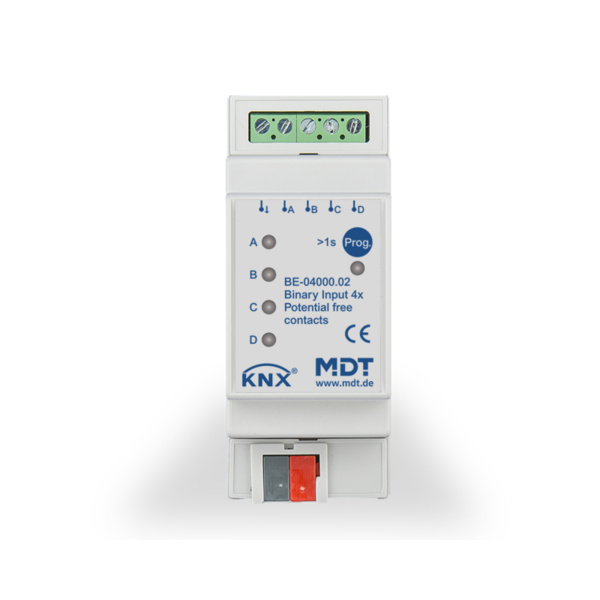

4x Binary Inputs 2TE, for pot.free contacts
€151,01 Incl. tax €232,32 Incl. tax. Out of stock, but available
Specifications
Information
4-fold Binary Input for KNX Systems
The 4-fold Binary Input makes conventional switches, buttons, and window or auxiliary contacts "smart" within KNX systems. This device is ideal for controlling lighting, blinds, and other automation tasks in your KNX-based smart home.
Main Features
- Supports multiple DPTs: The Binary Input can send up to 4 values/DPTs on the same or different objects.
- Innovative group control: Long or extra-long button presses can trigger different functions.
- 4 integrated logic modules: Enables logical operations and controls, such as checking if all windows are closed.
- NO or NC contacts: The contact status (normally open or normally closed) can be sent.
- Control of blinds: Supports both 1-button and 2-button operation.
- Forced setting for each output: Ensures a fixed position, regardless of input.
- Scenes and blocking: Each channel can call up a preset scene or be blocked.
- Integrated pulse and switch counters: Suitable for 30 ms S0 pulses, with extensive counting functions.
- Cyclical sending: Regularly sends updates or after a reset.
- Internal contact voltage: Supplied with an internal voltage of 12V.
Technical Specifications
| Inputs | 4 |
|---|---|
| Signal voltage | For potential-free contacts |
| Internal contact voltage | 12V |
| Permitted cable length | 100m |
| KNX Interface | TP-256 |
| Available software | ETS 5 |
| Power supply | KNX bus |
| Power consumption | typ. <0,3W |
| Operating temperature | 0 to +45°C |
| Protection class | IP 20 |
| Dimensions | 2SU |
Important Note: This device is intended for fixed installations in dry rooms and is compatible with DIN 35mm rails in distribution boards or enclosed compact boxes.
Manufactured in Germany, certified according to ISO 9001, with a 3-year warranty.
